Spektrum

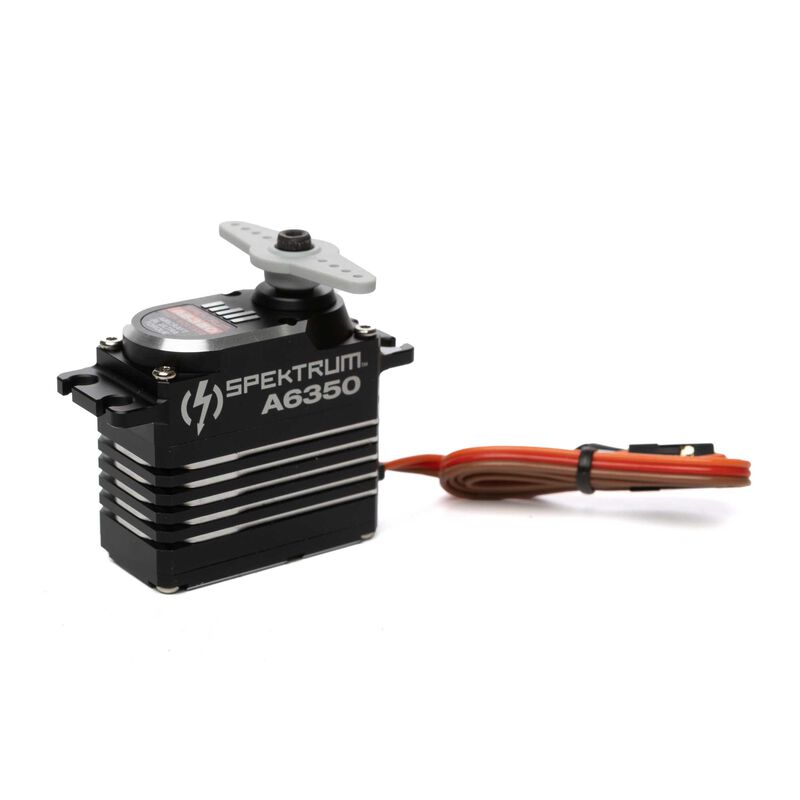

A6350 Ultra Torque/High Speed Brushless HV Servo
A6350 Ultra Torque/High Speed Brushless HV Servo
SKU:SPMSA6350
Share
Spektrum A6350 is a standard-size digital high-voltage aircraft servo for giant-scale, 3D and jet models. It uses a brushless motor, all-metal gears, dual ball bearings, a 23-tooth output spline and an aluminium case, with rated performance of 61.4 kg-cm (852 oz-in) torque and 0.095 sec/60° transit speed at 8.4 V.
Included
(1) A6350 Brushless Servo
(4) Mounting Grommets, Eyelets and Hardware
(4) Plastic Servo Arms
(1) Servo Arm Screw
(1) Set of Guided by Spektrum Decals
Features
Digital high-voltage aircraft servo
Standard size
Brushless motor
All-metal gear train
Dual ball bearing-supported drivetrain
23-tooth output spline
Aluminium case
Soft-start function
Over-current protection
Temperature protection
Initialisation start tone
Integrated failsafe holds the last known position if signal is lost while power is maintained
200–333 Hz operating frequency
Specifications
Size Category: Standard
Application: Aircraft
Servo Type: Digital
Motor Type: Brushless
Gear Type: Metal
Gear Material: Metal
Bearings: Dual ball bearing
Output Spline: 23T
Operating Voltage: 6.0–8.4 V
Torque: 41.5 kg-cm (576 oz-in) at 6.0 V
Torque: 52.2 kg-cm (725 oz-in) at 7.4 V
Torque: 61.4 kg-cm (852 oz-in) at 8.4 V
Speed: 0.145 sec/60° at 6.0 V
Speed: 0.115 sec/60° at 7.4 V
Speed: 0.095 sec/60° at 8.4 V
Operating Frequency: 200–333 Hz
Length: 41 mm (1.61 in)
Width: 21 mm (0.83 in)
Height: 41 mm (1.61 in)
Weight: 85 g (3 oz)
Connector Type: Universal
Overload Protection: Yes
Water-Resistant: No
